SMC株式会社 ZSE20

电子式压力开关/压力传感器(传感器、放大器一体型)

3画面高精度数字式压力开关 ZSE20(F)/ISE20

	・项目的设置可视化。・简单的3步设定。・画面切换简单。可一边观察测定值一边进行设定。・延迟时间：最快1.5ms。・消耗电流：25mA以下。

下载CAD 说明书 DoC PDF

其他资料	安全上的注意压力开关・流量开关/共通注意事项压力开关扩展品/应用用语集/技术解说

系列	种类	额定压力范围
ZSE20F	混合压	−100.0～100.0kPa
ZSE20	真空压	0.0～−101.0kPa
ISE20	正压	−0.100～1.000MPa

■Setting is possible while checking the measured value.

■Delay Time : 1.5 ms^*1 or less

* 1 Select from 1.5 ms or less, 20 ms, 100 ms, 500 ms, 1000 ms, 2000 ms, or 5000 ms.

■Current Consumption : 25 mA^*2 or less

* 2 Further reduced by approx. 60% in power-saving mode (For 20 series)

■The 20A, 20B, and 20C series have been added to the product lineup.

■Improved Operability

● Visualization of Settings

The sub screen (label) shows the item to be set.

● Simple 3-Step Settings

When the S button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the S button is pressed and the hysteresis (H_1) is being displayed, the hysteresis value can be set.

● Now with a snap shot function for set value reading

● Easy Screen Switching　It is possible to change the settings while checking the measured value.

● 3 Setting Modes Select the setting mode that best meets your needs.

● Other Sub Screen Display
The peak value or bottom value, or both values can be displayed on one screen!

* Peak and bottom values are maintained even if the power supply is cut.

■Convenient Functions

■Compact & Lightweight

■Improved Installability

Connector type Wiring is possible after piping has been connected.

■Mounting

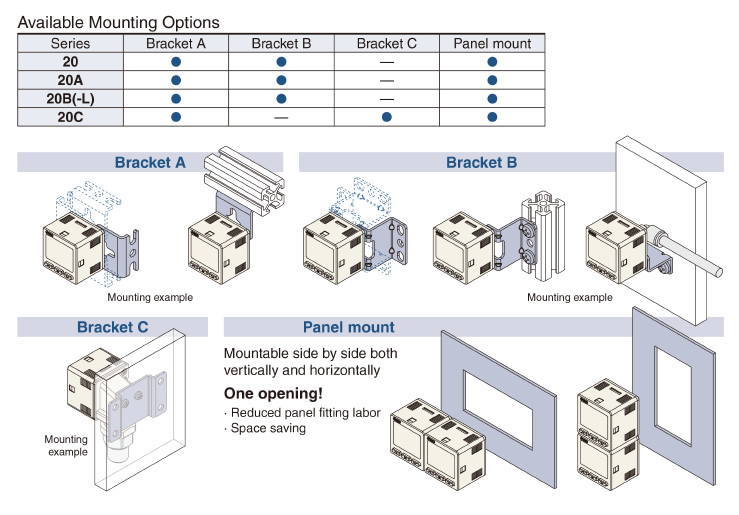

The bracket configuration allows for mounting in four orientations.

■For General Fluids ZSE20C(F)/ISE20C(H)

● Stainless diaphragm

Oil-free (Single-layer diaphragm structure)
Sensor unit: Stainless steel 630　　Fitting parts: Stainless steel 304
A stainless steel 316L option is also available for the sensor unit and fitting parts.

● Enclosure: IP65

● Leakage

1×10^-10Pa・m³/s
<Face seal and compression fitting>
1×10^-5Pa・m³/s
<Threaded type (R, Rc, NPT, G)>

● Welded structure for sensor units and fitting parts

Select from a face seal or compression fitting.

● Applicable Fluid Examples

Water
Hydraulic fluid (JIS-K2213)
Silicone oil (JIS-K2213)
Lubricant (JIS-K6301)
Fluorocarbon

Argon
Carbon dioxide
Air-containing drainage
Nitrogen
